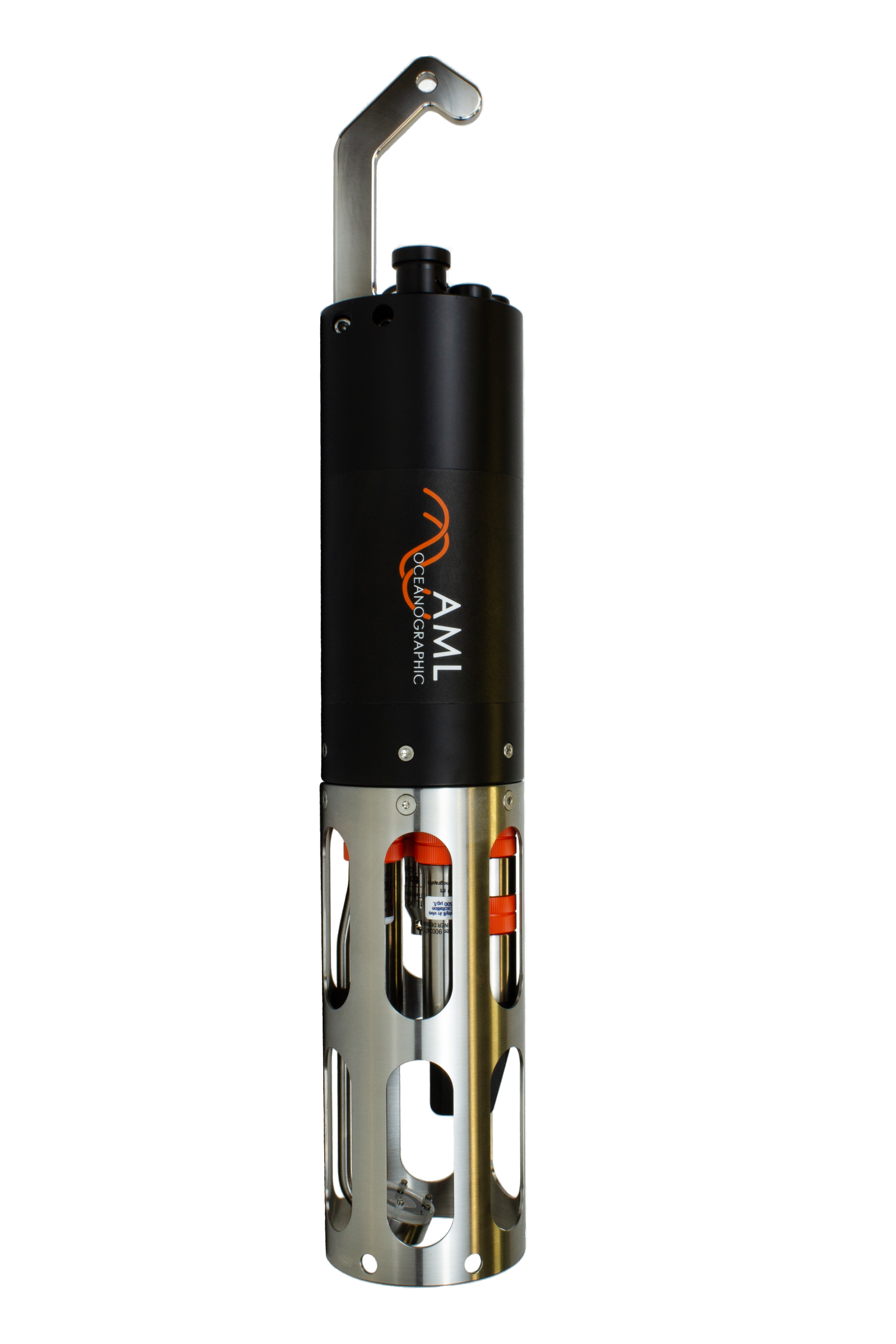

AML-6



The AML-6 series of instruments is a highly configurable family of multiparameter sondes designed for a wide range of data collection applications. The ‘6’ designation refers to the number of X2 series sensors that may be simultaneously installed on the instrument’s endcap. Additional sensors may be connected externally, allowing up to 8 sensors in total.



The AML-6 comes in the AML-6 LGR and the AML-6 RT. While nearly identical in size and form factor, the two configurations differ in a few key features which specialize them for their respective applications:

• The LGR designation (ie. AML-6 LGR) are self-powered via a rechargeable internal battery and have a mechanical on/off switch adjacent to their shackle. These instruments are most commonly used for multiparameter profiling applications and internally log sensor measurements and transfer data postdeployment.



• The RT designation (ie. AML-6 RT) stream data while in-situ (though they have the ability to internally record data as well). Power and communication to these instruments is facilitated via a waterproof connector located adjacent to the shackle. These instruments rely on external power for operation and the application of this power turns the instrument on in lieu of a mechanical switch These instruments are commonly used in moored applications, buoys, underwater observatories, and ROVs.



*Sensor-heads are ordered separately.



Resources:

 Data Sheet

 User Guide - LGR

 User Guide - RT

 Sailfish Software





Related Products:

X2change™ Sensor-Heads
