Output, per shot 1250J

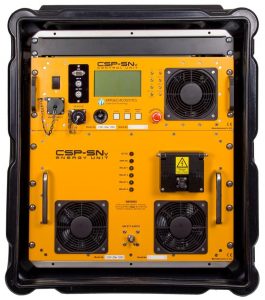

The CSP-SNv has been engineered for use with the dual deck Dura-Spark UHD 400+400 catamaran, providing flip-flop and fire delay modes of operation. It offers a solution to the industry requirement of acquiring UHR seismic data in challenging environments with a ≤1m shot point interval.
Key Features
- Microprocessor configuration and control.
- Intuitive user interface, with LCD display and LED indicators.
- 4000J per second peak charge rate
- Fire delay mode
- Flip-flop mode
- User programmable ‘soft start’
- Master / slave key support
- Additional safety/protection features
- Programmable voltage technology allows operator tuning to suit application
- High current and voltage solid state (semiconductor) discharge method
- Debug log and diagnostics.
- Meets EC emissions regulations enabling interference-free field use
- Supplied in robust transit case, with HV junction box (HVJ3004) and mains lead.
Applications
- High and ultra high resolution multi-channel survey
- Cable and pipeline route survey
- Geophysical windfarm site survey
- Geohazard survey
