Phantom™ 20 & 34
TRACK MORE SIGNALS FOR THE MOST ROBUST LOW-POWER MULTI-FREQUENCY, MULTI-GNSS SOLUTION

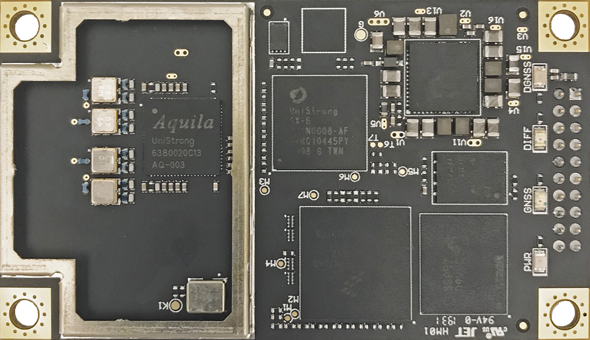

Track more signals for unparalleled positioning performance with Hemisphere GNSS’ new Phantom 20 and 34 OEM boards. The latest technology platform enables simultaneous tracking of all satellite signals including GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS and L-band making it the most robust and reliable solution for GIS, agriculture, and machine control. The power management system efficiently governs the processor, memory, and ASIC making it ideal for multiple integration applications.
EXPERIENCE UNPARALLELED ACCURACY AND RELIABILITY WITH ADVANCED TECHNOLOGY FEATURES
The Phantom 20 and 34 are the most accurate and reliable OEM modules with two advanced technology features; aRTK™ and Tracer™. Hemisphere’s aRTK technology, powered by Atlas, allows the Phantom 20 and 34 to operate with RTK accuracies when RTK corrections fail. Tracer uses specialized algorithms to sustain positioning in the absence of correction data.
SCALABLE SOLUTIONS
With the Phantom 20 and 34, positioning is scalable and field upgradeable with all Hemisphere software and service options. Use the same centimeter-level accuracy in either single frequency mode, or employ the full performance and fast RTK initialization times over long distances with multi-frequency, multi- constellation GNSS signals. High- accuracy L-band positioning from meter to sub-decimeter levels available via Atlas GNSS correction service.
EASE OF MIGRATION
Leverage the industry standard form factor for easy upgradeability from other manufacturers’ modules.
KEY FEATURES
- Multi-Frequency GPS, GLONASS, BeiDou, Galileo, QZSS, IRNSS, SBAS, and L-band (Atlas®)
- Long-range RTK baselines up to 50 km with fast acquisition times
- Compatible with many RTK sources including Hemisphere GNSS’ ROX format, RTCM, CMR, CMR+
- Mechanically and electrically (pin-for-pin) compatible with many other manufacturers’ modules
- Atlas® L-band capable to 4 cm RMS
- Athena™ GNSS engine providing best-in-class RTK performance
- Serial, USB host (Phantom 34 only), USB device, and CAN connectivity for ease of use and integration
The Phantom 20 & 34 are Atlas capable products
