StarFish Accessories

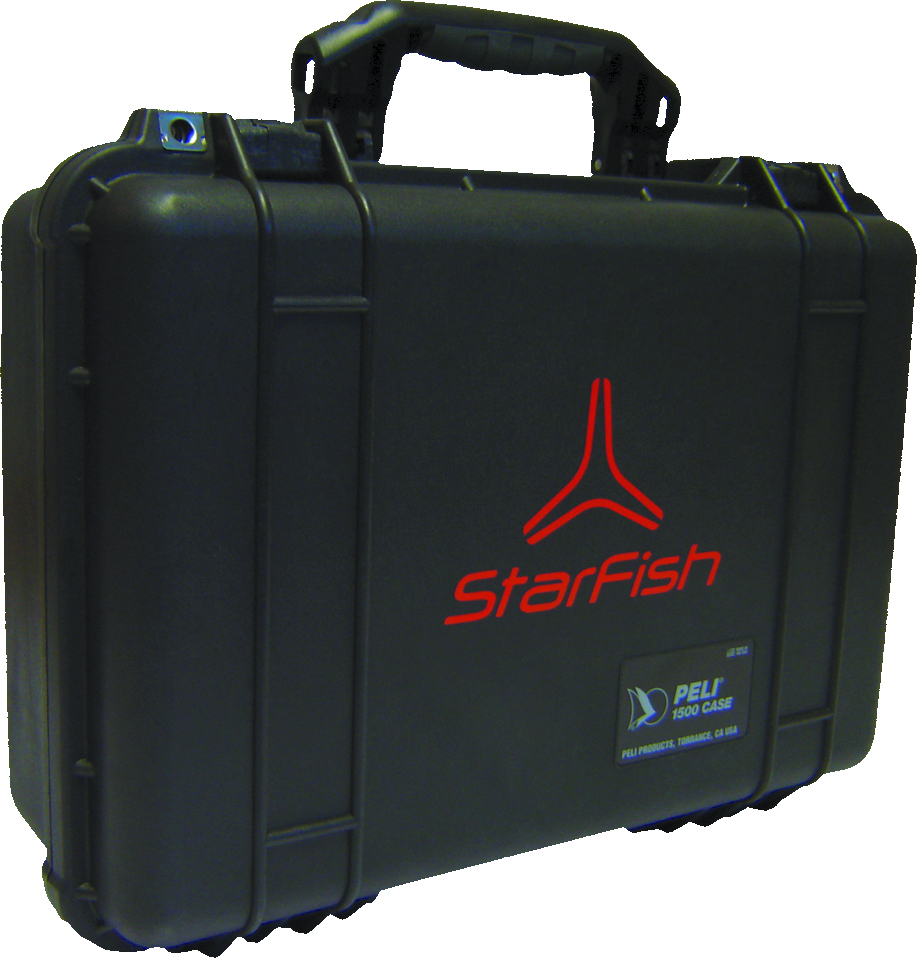

StarFish Peli™ Case
The StarFish Peli™ Case provides a rugged, durable, watertight and dustproof method for transportation and storage of your StarFish Towed System. Perfect for use in the harshest of operating conditions.
Internal Dimensions (mm) 425L x 284W x 155H External Dimensions (mm) 470L x 357W x 176H Lid Depth 46mm Base Depth 109mm Weight With Foam 3.20kg Weight Without Foam 2.90kg Buoyancy maximum 29.10 kg Certificate IP67, Stanag 4280 / Defstan 81- 41, MIL C-4150_J, ATA Single folding front handle with non-slip overmoulded cushion grip.
GPS Receiver
High performance GPS receiver for all StarFish Seabed Imaging Systems.
'SiRF star' high performance, low power chipset All-in-view 20-channel parallel processing Built-in patch antenna Very High sensitivity to satellite signal (Tracking Sensitivity:-159 dBm) Extremely fast TTFF(Time To First Fix) at low signal level Build-in SuperCap to reserve system data for rapid satellite acquisition Supported NMEA 0183 data protocol Super-cohesive magnet for mounting on vessel Water resisted and non-slip on the bottom USB interface connection port LED indicator for GPS fix or not fix.
StarFish Pole Mount Bracket
Instantly convert your towed StarFish into a pole mounted sonar. Simply clamp the bracket to the fixing holes at the top of your StarFish Side Scan Sonar and insert any pole with an outside diameter of 25mm (1"). The pole can then be secured to your vessel or platform.
Ideal in congested waterways where towing the StarFish might cause it to get snagged on an obstruction or caught in another boats prop Creates a more flexible system for surveys in shallow water where precise target localisation is needed.
StarFish 20m Tow Cable
All 450F systems from StarFish Seabed Imaging Systems are fitted with a fixed 20m cable.
With the introduction of the 452F and 990F sonar heads, their inline subsea 'Impulse' connector allows the towing cable to be interchanged. Both systems are now shipped with a 20m towing cable as standard; you can however purchase a replacement cable or indeed have more flexibility with a 50m cable as outlined below.
Please note that this cable is not suitable for users with the now legacy 'D-Type connector' top-boxes, please contact us for forther information.
StarFish 50m Tow Cable on a Reel
StarFish Seabed Imaging Systems are now shipped with a 20m towing cable as standard. However, with the introduction of the 452F and 990F sonar heads, their inline subsea 'Impulse' connector allows the towing cable to be interchanged.
The 50m cable option is a StarFish accessory, offered to provide flexibility on larger vessels. Where a large amount of cable is required on deck, the 50m option allows the system to be installed while still leaving sufficient cable length for flying the StarFish.
The 50m towing cable accessory is supplied on a rugged and compact reel that provides a quick and convenient method of storing the cable without introducing the twisting often seen when manually coiling (that in-turn could cause the sonar to tow at an angle).
Please note that this cable is not suitable for users with the now legacy 'D-Type connector' top-boxes, please contact us for further information.
