Tallysman - Dual Band Antennas
Tallysman`s dual band antennas set a new economical price point for antennas which receive GPS L1/L2 plus GLONASS G1/G2 signals. By employing Tallysman’s Accutenna® technology, we are able to produce exceptional performance from a smaller antenna. The antenna provides excellent phase linearity, low axial ratios, and tight Phase Centre Variations (PCV) over the entire bandwidth.
Tallysman’s patented VeraPhase® 6200 is the best performing survey grade antenna available in a lightweight, compact size and at an economical price point.
All of Tallysman’s antennas provide invariant response over the full range of operating voltages and operating temperatures. They are available with a wide range of connectors and custom cable lengths.
**NEW** Tallysman now offers NMO mount antennas!
HC871
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: Magnetic or Adhesive Tape
Gain (dB): 27
Current (mA): 12
HC871E
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: OEM / Embedded
Gain (dB): 28
Current (mA): 15
HC872
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, L-Band
Mount: Magnetic or Adhesive Tape
Gain (dB): 27
Current (mA): 12
HC872E
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, L-Band
Mount: OEM / Embedded
Gain (dB): 28 or 35
Current (mA): 12
HC882
Coverage: GPS/QZSS-L1, GPS/QZSS-L2, GLONASS-G1, GLONASS-G2, GLONASS-G3, Galileo-E1, Galileo-E5b, BeiDou-B1, BeiDou-B2, L-band
Mount: Surface Mount / Direct Screw
Gain (dB): 28 or 35
Current (mA): 15
TW1825
Coverage: GPS L1/L5, GLONASS G1, Galileo E1/E5a, BeiDou B1/B2a, NavIC L5
Mount: OEM / Embedded
Gain (dB): 26
Current (mA): 12

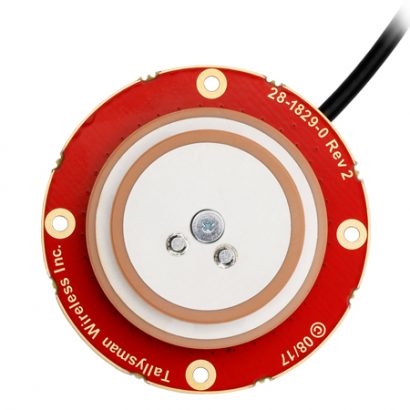

TW1829
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: OEM
Gain (dB): 27
Current (mA): 12
TW1889
Coverage: GPS L1/L2, GLONASS G1/G2/G3, Galileo E1/E5b, BeiDou B1/B2
Mount: OEM / Embedded
Gain (dB): 26
Current (mA): 12
TW3867
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: OEM
Gain (dB): 28
Current (mA): 24
TW3870
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: Through-Hole
Gain (dB): 35
Current (mA): 24
TW3872E
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: OEM
Gain (dB): 35
Current (mA): 24
TW3876E
Coverage: GPS L1, GLONASS G1, Galileo E1/E6, BeiDou B1/B3, QZSS L6
Mount: OEM / Embedded
Gain (dB): 35
Current (mA): 24
TW3887
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: OEM
Gain (dB): 35
Current (mA): 20
TW3872
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: Through Hole
Gain (dB): 35
Current (mA): 24
TW3882
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2
Mount: Through Hole
Gain (dB): 35
Current (mA): 24
TW3882E
Coverage: GPS/QZSS-L1, GPS/QZSS-L2, GLONASS-G1, GLONASS-G2, GLONASS-G3, Galileo-E1, Galileo-E5b, BeiDou-B1, BeiDou-B2
Mount: OEM / Embedded
Gain (dB): 35
Current (mA): 24
TW3892
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1, L-Band
Mount: Through Hole
Gain (dB): 35
Current (mA): 24
TW8829
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: Magentic or Adhesive Tape
Gain (dB): 27
Current (mA): 12
TW7872
Coverage: GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1
Mount: Magentic or Screw
Gain (dB): 32
Current (mA): 24
TW7875
Coverage: GPS L1/L5, GLONASS G1, Galileo E1/E5a, NavIC L5
Mount: Magentic or Screw
Gain (dB): 32
Current (mA): 24
TW7876
Coverage: GPS L1, GLONASS G1, Galileo E1/E6, BeiDou B1/B3, QZSS L6
Mount: Surface Mount / Magnet / Direct Screw / Adhesive
Gain (dB): 32
Current (mA): 24
